2.3. Dialogs and Docking

2.3.1. Docking Areas

GIMP has great flexibility for arranging dialog windows on your screen. Instead of placing each dialog in its own window, you can group dialogs using docks. A "dock" is a container window that can hold a collection of persistent dialogs, such as the Tool Options dialog, Brushes dialog, Palette dialog, etc. Docks cannot, however, hold non-persistent dialogs such as the Preferences dialog or an Image window.

GIMP has two default docks:

  • The Layers, Channels and Paths dock.

  • The Brushes, Patterns and Gradients dock.

In these docks, each window is in its own tab.

The Toolbox is a utility window. The Tool Options window is normally attached under the Toolbox and displays the options of the selected tool.

Use WindowsDockable Dialogs. view a list of dockable dialogs. Choose a dockable dialog from the list to view the dialog. If the dialog is available in a dock, then it is made visible. If the dialog is not in a dock, then it is displayed in its own window. Note that the Windows command is only available while an image is open for editing.

Every dockable dialog has two types of docking areas: the docking bars and the docking-tab area. In a dock, the docking-tab area covers the entire window.

Figure 3.5. The two docking types

The two docking types

The dockable window is docked onto a dock bar.

The two docking types

The dockable window is docked onto the docking-tab area. A new tab has been created.


2.3.2. Docking Bars

Each dockable window has two docking bars. These bars are thin gray bars, very unobtrusive and easy to not notice: most people don't realize that they exist until they are specifically pointed out.

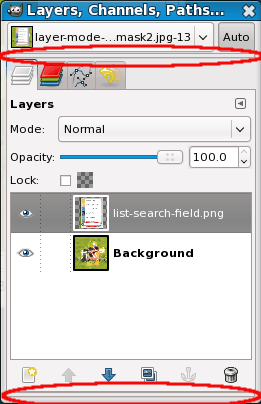

Figure 3.6. Docking bars

Docking bars

A window with docking bars highlighted.


2.3.3. Docking Drag Handles

Each dockable window has a drag handle area, as highlighted in the figure below. The cursor changes to a hand shape when it is over a drag handle area. To dock a dialog, click in the drag handle area, and drag it:

  • onto a docking bar so that the dialog is attached below the docking bar in the window,

  • or into the docking-tab area so that the dialog is added as a tab.

Figure 3.7. A dockable window, with the drag handle area highlighted

A dockable window, with the drag handle area highlighted

This screenshot shows the area that can be used to drag a dialog window onto a dock. It can also be used to take a dialog off the dock.


You can drag more than one dialog onto the same docking bar. If you do, the dialogs are displayed as tabs, represented by iconic symbols at the top. Click on the iconic symbol to bring the tab to the front.

[Note] Note

You can also add, detach, or delete a tab window using the Tab menu (see below).

[Tip] Tip

Press TAB in an Image window to toggle the visibility of the docks. This is useful if the docks hide a portion of the image Window. You can quickly hide all the docks, do your work, then display all the docs again. Pressing TAB inside a dock to navigate through the dock.

2.3.4. Image Selection

Some docks contain an Image Selection Menu: a menu listing all of the images open in GIMP. The Image Menu displays the name of the image whose information is shown in the dock. Use the Auto button to toggle the value of Auto Follow Active Image. Suppose you are using the Layers dialog and you want to see the layers for a different image. Select the desired image from the Image Selection Menu. Although this is convenient, do not forget that you changed the working image for the dock. Setting Auto Follow Active Image from the Tab menu helps to avoid this problem.

Figure 3.8. A dock with an Image Menu highlighted.

A dock with an Image Menu highlighted.

By default, a Layers, Channels, and Paths dock shows an Image Menu at the top, and other types of docks do not. You can always add or remove an Image Menu, however, using the Show Image Menu toggle in the Tab menu, as described below. (Exception: you cannot add an Image Menu to the dock that contains the Toolbox.)

2.3.5. Tab Menu

Figure 3.9. A dialog in a dock, with the Tab menu button highlighted.

A dialog in a dock, with the Tab menu button highlighted.

In each dialog, you can access a special menu of tab-related operations by pressing the Tab Menu button, as highlighted in the figure above. Exactly which commands are shown in the menu varies a bit from dialog to dialog, but they always include operations for creating new tabs, or closing or detaching tabs.

Figure 3.10. Tab menu from the Layers dialog.

Tab menu from the Layers dialog.

The Tab menu gives you access to the following commands:

Context Menu

At the top of each Tab menu is an entry that opens into the dialog's context menu, which contains operations specific to that particular type of dialog. For example, the context menu for the Layers tab is Layers Menu, which contains a set of operations for manipulating layers.

Add Tab

Add Tab opens into a submenu allowing you to add a large variety of dockable dialogs as new tabs.

Figure 3.11. Add tab sub-menu

Add tab sub-menu

Close Tab

Close the dialog. Closing the last dialog in a dock causes the dock itself to close.

Detach Tab

Detach the dialog from the dock, creating a new dock with the detached dialog as its only member. It has the same effect as dragging the tab out of the dock and releasing it at a location where it cannot be docked.

If the tab is locked, this menu item is insensitive and grayed out.

Lock Tab to Dock

Prevent the dialog from being moved or detached. When activated, Detach Tab is insensitive and grayed out.

Preview Size

Figure 3.12. Preview Size submenu of a Tab menu.

Preview Size submenu of a Tab menu.

Many, but not all, dialogs have Tab menus containing a Preview Size option, which opens into a submenu giving a list of sizes for the items in the dialog (see the figure above). For example, the Brushes dialog shows pictures of all available brushes: the Preview Size determines how large the pictures are. The default is Medium.

Tab Style

Figure 3.13. Tab Style submenu of a Tab menu.

Tab Style submenu of a Tab menu.

Available only when multiple dialogs are in the same dock, Tab Style opens a submenu allowing you to choose the appearance of the tabs at the top (see the figure above). There are five choices, not all are available for every dialog:

Icon

Use an icon to represent the dialog type.

Current Status

Is only available for dialogs that allows you to select something, such as a brush, pattern, gradient, etc. Current Status shows a representation of the currently selected item in the tab top.

Text

Use text to display the dialog type.

Icon and Text

Using both an icon and text results in wider tabs.

Status and Text

Show the currently selected item and text with the dialog type.

View as List; View as Grid

These entries are shown in dialogs that allow you to select an item from a set: brushes, patterns, fonts, etc. You can choose to view the items as a vertical list, with the name of each beside it, or as a grid, with representations of the items but no names. Each has its advantages: viewing as a list gives you more information, but viewing as a grid allows you to see more possibilities at once. The default for this varies across dialogs: for brushes and patterns, the default is a grid; for most other things, the default is a list.

[Tip] Tip

When the treeview is View as List, pressing Ctrl+F (or Ctrl+S, it depends on your GTK+ keybindings), opens a text box, a search field, where you can enter the first letter(s) of the name of the item you want. The search field will not open with View as Grid.

Figure 3.14. The list search field.

The list search field.

Use Ctrl+F to open the list search field.


The list search field automatically closes after five seconds if you do nothing.

[Note] Note

The search field shortcut is also available for the treeview you get in the Brush, Font or Pattern option of several tools.

Show Button Bar

Some dialogs display a button bar on the bottom of the dialog; for example, the Patterns, Brushes, Gradients, and Images dialogs. This is a toggle. If it is checked, then the Button Bar is displayed.

Figure 3.15. Button Bar on the Brushes dialog.

Button Bar on the Brushes dialog.

Show Image Selection

This is a toggle. If it is checked, then an Image Menu is shown at the top of the dock (see Figure 3.8, “A dock with an Image Menu highlighted.”). It is not available for dialogs docked below the Toolbox. This option is interesting only if you have several open images on your screen.

Auto Follow Active Image

This option is also interesting only if you have several images open on your screen. Then, the information displayed in a dock is always that of the selected image in the Image Selection drop-down list. If the Auto Follow Active Image is disabled, the image can be selected only in the Image Selection. If enabled, you can also select it by activating the image directly (clicking on its title bar).
