6.11. Canvas Size

The canvas is the visible area of the image. By default the size of the canvas coincides with the size of the layers. The Canvas Size command lets you enlarge or reduce the canvas size. You can, if you want, modify the size of the layers. When you enlarge the canvas, you create free space around the contents of the image. When you reduce it, the visible area is cropped, however the layers still extend beyond the canvas border.

When you reduce the canvas size, the new canvas appears surrounded with a thin negative border in the preview. The mouse pointer is a moving cross: click and drag to move the image against this frame.

6.11.1. Activating the Command

  • You can access this command from the image menubar through ImageCanvas Size.

6.11.2. Description of the Canvas Size dialog

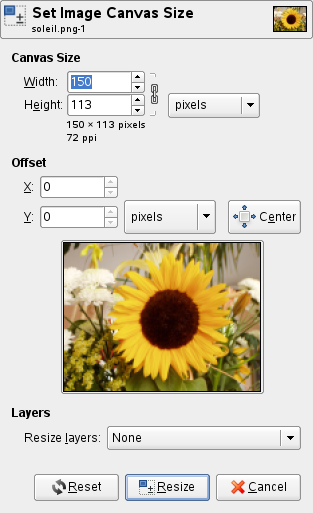

Figure 15.61. The Canvas Size dialog

The Canvas Size dialog

Canvas Size

Width; Height

You can set the Width and the Height of the canvas. The default units are pixels but you can choose different units, e.g. percent, if you want to set the new dimensions relative to the current dimensions. If the Chain to the right of the Width and Height is not broken, both Width and Height keep the same relative size to each other. That is, if you change one of the values, the other one also changes a corresponding amount. If you break the Chain by clicking on it, you can set Width and Height separately.

Whatever units you use, information about the size in pixels and the current resolution are always displayed below the Width and Height fields. You cannot change the resolution in the Canvas Size dialog; if you want to do that, use the Print Size dialog.


The Offset values are used to place the image (the image, not the active layer) on the canvas. You can see the size and the content of the canvas in the preview of the dialog window. When the canvas is smaller than the image, the preview window shows it in a frame with a thin negative border.

X ; Y

The X and Y specify the coordinates of the upper left corner of the image relative to the upper left corner of the canvas. They are negative when the canvas is smaller than the image. You can place the image in different ways (of course, the coordinates can't exceed the canvas borders):

  • by click-and-dragging the image,

  • by entering values in the X and Y text boxes,

  • by clicking on the small arrow-heads. This increments the value by one pixel (unit).

  • And when the focus is on a text box, you can use the keyboard arrow keys, Up and Down to change by one pixel (unit), or PageUp and PageDown to change the value by 10 pixels (units).


Before the GIMP-2.4 version, Canvas Size had no influence on layer size. To change it, you had to use the Layer Boundary Size command. The Layers option now allows you to specify how, possibly, layers will be resized. The drop-down list offers you several possibilities:

Figure 15.62. The Resize layers list

The Resize layers list

  • None: default option. No layer is resized, only the canvas is.

  • All Layers: all layers are resized to canvas size.

  • Image-sized layers: only layers with the same size as the image are sized to canvas size.

  • All visible layers: only visible layers, marked with a icon, in the Layer Dialog, are sized to canvas size.

  • All linked layers: only linked layers, marked with a in the Layer Dialog, are sized to canvas size.


The Center button allows you to center the image on the canvas. When you click on the Center button, the offset values are automatically calculated and displayed in the text boxes.

[Note] Note

When you click on the Resize button, the canvas is resized, but the pixel information and the drawing scale of the image are unchanged.

If the layers of the image did not extend beyond the borders of the canvas before you changed its size, there are no layers on the part of the canvas that was added by resizing it. Therefore, this part of the canvas is transparent and displayed with a checkered pattern, and it is not immediately available for painting. You can either flatten the image, in which case you will get an image with a single layer that fits the canvas exactly, or you can use the Layer to Image Size command to resize only the active layer, without changing any other layers. You can also create a new layer and fill it with the background you want. By doing this, you create a digital passe-partout (a kind of glass mount with a removable back for slipping in a photograph).

6.11.3. Example

Figure 15.63. Original image

Original image

We started with a green background layer 100x100 pixels, which defines a default canvas with the same size. Then we added a new red layer 80x80 pixels. The active layer limits are marked with a black and yellow dotted line. The red layer does not fill the canvas completely: the unoccupied part is transparent. The background color in the Toolbox is yellow.

Figure 15.64. Canvas enlarged (layers unchanged)

Canvas enlarged (layers unchanged)

The canvas has been enlarged to 120x120 pixels. The layers size remained unchanged. The unoccupied part of the canvas is transparent.

Figure 15.65. Canvas enlarged (all layers changed)

Canvas enlarged (all layers changed)

The canvas has been enlarged to 120x120 pixels. All layers have been enlarged to the canvas size. The undrawn part is transparent in the red layer and yellow (background color in Toolbox) in the green background layer.

6.11.4. What's Canvas Size useful for?

You can use this command to crop an image:

Figure 15.66. Resizing canvas

Resizing canvas

Click on the chain next to Width and Height entries to unlink dimensions. By modifying these dimensions and moving image against canvas, by trial and error, you can crop the part of the image you want. Click on the Center button and then on the Resize button.

Figure 15.67. Cropped image

Cropped image

[Note] Note

The Crop tool is easier to use.
