9.2. Depth Merge

Depth Merge is a Combine Filter which is useful to combine two different pictures or layers. You can decide which part of every image or layer will stay visible.

9.2.1. Overview

Figure 16.159. Filter example

Filter example

Original

Filter example

Filter applied


Every image is associated with a map which works as a mask. Simply create this map as a grayscale gradient: when applied onto the image, dark areas of the mask will show the underlying image and bright areas will mask the image.

[Note] Note

To work with this filter, images and maps must have the same size. All images to be selected must be present on screen.

You can also use this filter on an image with several layers. All layers will appear in the drop-down lists used to select images. These layers must have the same size.

9.2.2. Accessing this Filter

You can find this filter through FiltersCombineDepth Merge

9.2.3. Options

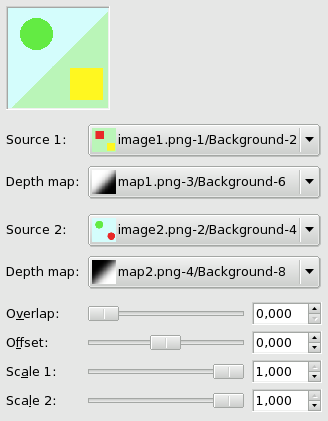

Figure 16.160. Depth Merge filter options

Depth Merge filter options

Source 1, Source 2

Defines the source images to use for the blending.

Depth map

Define the picture to use as transformation maps for the sources.

Overlap

Creates soft transitions between images.

Offset

This option shifts the merging limit, giving more or less importance to an image against the other.

Scale 1, Scale 2

Same as above for Offset, but more sensitive and applied to each map separately. When you scale to a lower value, it will affect the map image's value, making it darker. So, black is more dominant in the merge and you will see more of the image.

9.2.4. Using example

Maps are grayscale gradients created with the Blend tool and modified with the Curve tool.

Figure 16.161. Source images and their maps

Source images and their maps

Source image 1

Source images and their maps

Source image 2

Source images and their maps

Map 1

Source images and their maps

Map 2


You can understand what's going on. Image-1 is treated by map-1: the red square is masked and the yellow square remains visible. Image-2 is treated by map-2: the red circle is masked and the green circle remains visible. In total, the green circle and the yellow square stay visible.

Figure 16.162. Results

Results

No offset and no overlap. The limit between both images is sharp and is situated in the middle of the mask gradient.

Results

Offset = 0.980 : the limit, sharp, is shifted so that the image2 area is increased.

Results

Overlap: the limit is blurred.

Results

Scale 1 reduced to 0.056 : as with Offset, the limit is shifted. Image-1 area is increased.
