8.22. Color Exchange

8.22.1. Overview

Figure 15.164. Color Exchange filter example

Color Exchange filter example

Original image

Color Exchange filter example

Filter applied


This filter replaces a color with another one.

8.22.2. Activate the filter

This filter is found in the image window menu under ColorsMapColor Exchange.

8.22.3. Options

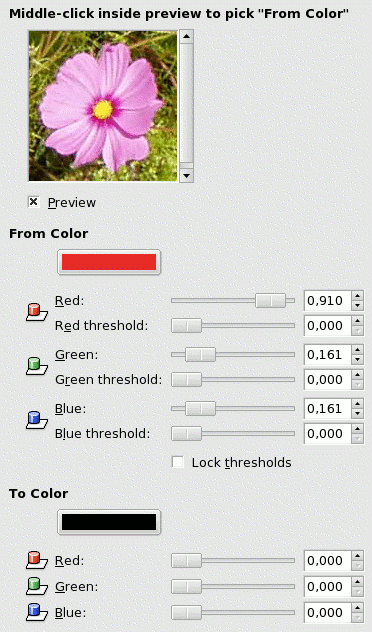

Figure 15.165. Option of the Two color exchange filter

Option of the Two color exchange filter

Preview

In this preview, a part of the Image is displayed. A selection smaller than preview will be complete in preview. A bigger one will be cut out to be adapted to the preview.

If you middle-click inside preview , the clicked pixel color will be selected and will appear as From Color.

From color

In this section, you can choose the color to be used to select pixels that will be concerned by color exchange.

Three sliders for RVB colors: If you have clicked on preview, they are automatically positioned. But you can change them. Each slider acts on color intensity. Input boxes and arrowheads work the same. Result is interactively displayed in the From swatch box.

Three sliders for thresholds, for each color. The higher the threshold, the more pixels will be concerned. Result is interactively displayed in Preview.

Lock Thresholds: This option locks threshold sliders which will act all the same.

To color

Three cursors allow to select the color that pixels will have. Result is displayed in swatch box and in preview. You can also click on the color dwell to get a color selector.
