2.7. Tileable Blur

2.7.1. Overview

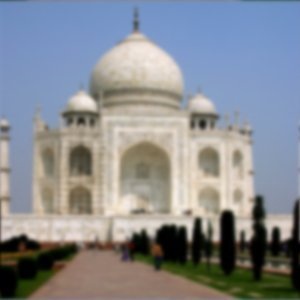

Figure 16.18. Example for the Tileable filter

Example for the Tileable filter

Original

Example for the Tileable filter

Filter Tileable Blur applied


This tool is used to soften tile seams in images used in tiled backgrounds. It does this by blending and blurring the boundary between images that will be next to each other after tiling.

[Tip] Tip

If you want to treat only images borders, you can't apply filter to the whole image. The solution to get the wanted effect is as follows:

  1. Duplicate layer (LayerDuplicate Layer) and select it to work on it.

  2. Apply Tileable Blur filter with a 20 pixels radius to this layer.

  3. Select all (Ctrl+A) and reduce selection (SelectionShrink) to create a border with the wanted width.

  4. Give a feathered border to the selection by using SelectionFeather.

  5. Delete selection with Ctrl+K.

  6. Merge layers with LayerMerge down.

2.7.2. Activate the filter

You can find this filter in the image menu under FiltersBlurTileable Blur.

2.7.3. Options

Figure 16.19. Tileable Blur filter options

Tileable Blur filter options

Radius

The bigger the radius, the more marked is the blur. By selecting Horizontal and Vertical, you can make the horizontal and vertical borders tileable.

Blur vertically, Blur horizontally

These options are self-explanatory.

Blur type

Choose the algorithm to be applied:

IIR

for photographic or scanned images.

RLE

for computer-generated images.
